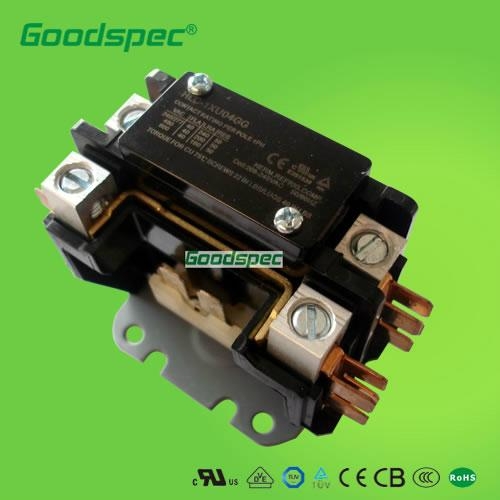

HLC-1XT04GG(1.5P/40A/120VAC) Definite Purpose Contactors

Model No.︰1.5P/40A/120VAC
Brand Name︰HONGLI
Country of Origin︰China
Unit Price︰US $ 4.5 / pc
Minimum Order︰1000 pc
Share on:

 Total 93 Related Items
Prev2728293031Next

Product Description
Application & Ordering information

1 、Application

HLC-1XT04GG definite purpose contactors (1-pole ,40A ) are ideal for(HVAC) air conditioning, refrigeration, heating, data processing, welding, elevators, hoists & cranes, lighting, pools & spas and food service equipment.

2 、Ordering information

HL C - 1X T 04 GG
Hongli Electric Contactor Factory Bulk Pack 1.5P 120VAC 40 FLA #14-4 Lug with quad QC

Product Feature

Detailed Product Description

• Unique amortization system to eliminate contact bounce
• Low cost
• Accessories modification quickly and easily without using tools
• Various kinds of terminals for customers' special requirements
• Easy to change the coil
• General amounting size, easy for replacement
• Can be combined with a thermal overload relay to form an electromagnet starter to protect the line in which overload operation may occur
• Double E magnet assembly providing optimal performance with reduced power consumption
• Effective dustproof cover available
• Silver Cadmium Oxide contacts provide long electrical endurance.
• Class F high temperature insulated coils are standard.

Technology Data

NUMBER
OF
POLES

COIL
VOLTAGE
50/60HZ

FULL
LOAD
AMPS

LINE
VOLTAGE

LOCKED
ROTOR
AMPS

RESISTIVE
SMPS
RATING

MAXIMUM HORSEPOWER

BOX
QUANTITY

APPROX
UNIT
WEIGHT

VOLTAGE

SINGLE
PHASE

20FLA-2POLE

2

24
120
208/240
277

20

240/277
480
600


120
100
80


30
30
30

120
240

2
3


50


.27 kg

25FLA-11/2&2POLE

1
with shunt

24
120
208/240
277

25

240/277
480
600


150
50
40


30
30
30


120
240



1
2



50


.23 kg

2

24
120
208/240
277

25

240/277
480
600


150
125
100


35
35
35


120
240



2
3



50

.27 kg

30FLA-11/2&2POLE

1
with shunt

24
120
208/240
277

30

240/277
480
600


150
75
50


40
40
40


120
240



1
2



50

.23 kg

2

24
120
208/240
277

30

240/277
480
600


150
125
100


40
40
40


120
240



2
3



50

.27 kg

40FLA-11/2&2POLE

1
with shunt

24
120
208/240
277

40

240/277
480
600


240
200
160


50
50
50


120
240



2
3



50

.23 kg

2

24
120
208/240
277

40

240/277
480
600


240
200
160


50
50
50


120
240



2
3



50

.27 kg



OTHER SPECIFCATIONS

20-35 FLA

40 FLA

Line and Load Terminals

#10-32Screw*

BoxLugs*

Wire Size Awg Min-Max

16-8*

14-4Cu/Al

Tightening Torque(recommended)

25in.Ibs

40 in.Ibs

Coil Termination

Dual.250 QC(2)

Dual.250 QC(2)

Quick Connects.250 std.-1 or 11-2 Pole

Quad

Quad

Quick Connects.250 std.-2 Pole

Dual or Quad

Dual or Quad

Covers

Optional

Standard

Insulation System

130℃ Class B

130℃ Class B

*stranding must be split for #8 wire*Permissible Ambient Temperature: -40℃/65℃ -40F/150F

  COIL TECHNICAL DATA 50/60hz

1POLE CONTACTORS

2POLE CONTACTORS

  Nominal Coil Voltage

24

120

208/240

277

24

120

208/240

277

  Maximum Pickup Volts

18

88

177

221

18

88

177

221

  Drop-Out Volts Range

6-15

20-70

40-140

50-165

6-15

20-70

40-140

50-160

  Nominal Inrush VA@50Hz

31

31

35

31

22

22

22

22

  Nominal Inrush VA@60Hz

28

28

32

28

20

20

20

20

  Nominal Sealed VA@50Hz

6

6

7

6

5.5

5.5

5.5

5.5

  Nominal Sealed VA@60Hz

5

5

6

5

4.5

4.5

4.5

4.5

  Nominal DC Resistance-Ohms

17.5

450

1800

2252

13

275

1056

1772

Specification

HLC-1P,1N,1X,2X,3X,4X series Difinite Purpose Contactor
