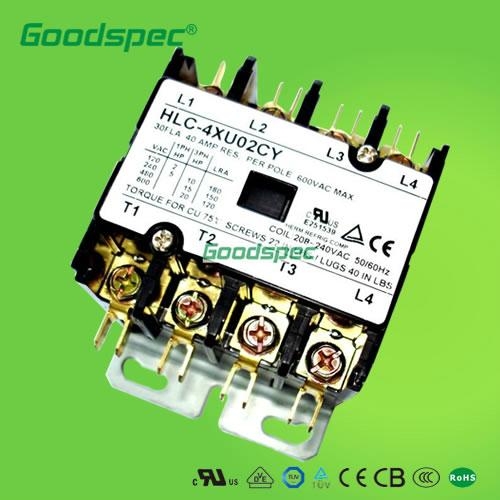

HLC-4XT00CY(4P/20A/120VAC) Definite Purpose Contactor

Model No.︰4P/20A/120VAC
Brand Name︰HONGLI
Country of Origin︰China
Unit Price︰US $ 15.7 / pc
Minimum Order︰1000 pc
Share on:

 Total 93 Related Items
Prev2122232425Next

Product Description

1 Application

HLC-4XT00CY definite purpose contactors (4-pole ,20A ) are ideal forHVAC air conditioning, refrigeration, heating, data processing, welding, elevators, hoists & cranes, lighting, pools & spas and food service equipment.

2 Ordering information
HL C - 4X T 00 CY
Hongli Electric Contactor Factory Bulk Pack 4P 120VAC 20 FLA #10-32 Combo screw with dual QC

Product Feature

Detailed Product Description Unique amortization system to eliminate contact bounce
Low cost
Accessories modification quickly and easily without using tools
Various kinds of terminals for customers' special requirements
Easy to change the coil
General amounting size, easy for replacement
Can be combined with a thermal overload relay to form an electromagnet starter to protect the line in which overload operation may occur
Double E magnet assembly providing optimal performance with reduced power consumption
Effective dustproof cover available
Silver Cadmium Oxide contacts provide long electrical endurance.
Class F high temperature insulated coils are standard.

Technology Data

NUMBER
OF
POLES
COIL
VOLTAGE
50/60HZ
FULL
LOAD
AMPS
LINE VOLTAGE LOCKED ROTOR AMPS RESISTIVE SMPS RATING MAXIMUM HORSEPOWER BOX QUANTITY APPROX UNIT WEIGHT
VOLTAGE SINGLE
PHASE
THREE
PHASE
20FLA-3POLE
3 24
110/120
280/240
277
20 240/277
480
600
120
100
80
30
30
30

110/120
200/240
480/600

1.5
3
-
-
7.5
7.5
25 .45 kg
25FLA-3POLE
3 24
110/120
280/240
277
25 240/277
480
600
150
125
100
35
35
35

110/120
200/208
240/277
480
600

2
-
5
-
-
-
7.5
10
25
20
25 .45 kg
30FLA-3POLE
3 24
24
110/120
110/120
208/240
208/240
277
30 240/277
480
600
180
150
120
40
40
40

110/120
200/208
240/277
480
600

2
-
5
-
-
-
10
10
15
20
25 .45 kg
40FLA-3POLE
3 24
24
110/120
110/120
208/240
208/240
277
40 240/277
480
600
240
200
160
50
50
50

110/120
200/208
240/277
480
600

3
-
7.5
-
-
-
10
10
20
25
25 .45 kg

OTHER SPECIFCATIONS 20-30 FLA 40 FLA
Line and Load Terminals #10-32 screw* Box Lug
Wire Size Awg Min-Max 16-8** 14-4 Cu/AL
Tightening Torque(Recommended) 22 in ibs 40 in ibs
Quick Connects:power Terminals Coil Termainals Dual 250 QC
Dual 250 qc(2)***
Dual 250 QC
Dual 250 qc(2)***
Covers Optional Standard
Insulation System 130 Class B 130 Class B
*Stranding must be split for #8 wirt. **(1)#6-32 screw and (1).250QC are optional.***Permissible Ambient Temperature: -40/65 -40F/150F

  COIL TECHNICAL DATA 50/60hz HLC Series
  Nominal Coil Voltage 24 120 208/240 277 480
  Maximum Pickup Volts 18 88 177 220 384
  Drop-Out Volts Range 6-15 20-70 40-140 65-185 150-270
  Nominal Inrush VA@50Hz 65 65 65 65 65
  Nominal Inrush VA@60Hz 60 60 60 60 60
  Nominal Sealed VA@50Hz 7.5 7.5 7.5 7.5 7.5
  Nominal Sealed VA@60Hz 6 6 6 6 6
  Nominal DC Resistance-Ohms 6.6 165 660 880 1320

HLC-1P,1N,1X,2X,3X,4X series Difinite Purpose Contactor

DownLoad PDF DataSheet
