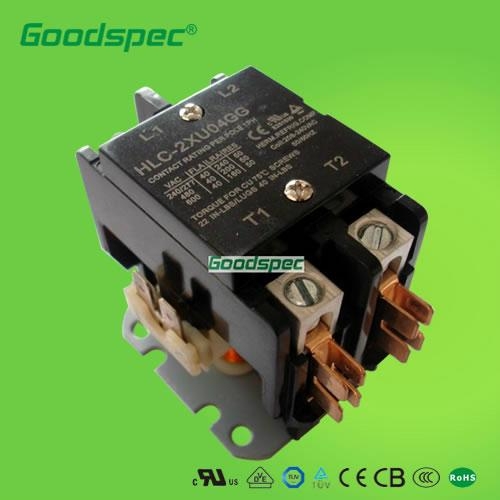

HLC-2XH04GG(2P/40A/380-480V) Definite Purpose Contactor

Model No.︰2P/40A/380-480V
Brand Name︰HONGLI
Country of Origin︰China
Unit Price︰US $ 6.4 / pc
Minimum Order︰1000 pc
Share on:

 Total 93 Related Items
Prev56789Next

Product Description
Applicable and Description

1. Applicable Scope

HLC-2XH04GG(2P/40A/480VAC)Definite Purpose Contactor(Follow Defers To DP Contactor),Mainly Is Suitable For 50Hz Or 60Hz, When The AC-8a Use Category Fixed Working Voltage Is 240V Or 277V The Nominal Current Up To The 40A Electric Circuit, Is Suitable For The Starting And The Control Single-Phase Motor (Or Compressor) And Other Single-Phase Loads.Mainly Uses In The Domestic Electric Appliances Profession, Specially In Air Conditioning Profession,Conforms To IEC60947, UL508 and GB14048standard.

2.Type and Meaning

HL C - 2X H 04 GG
Hongli Electric Contactor Factory Bulk Pack 2P 480VAC 40 FLA #14-4 Lug with quad QC
Product Explanation And Main Technical Parameter
Type HLC-2XH04GG(2P/40A/480VAC) Definite Purpose Contactor
Standard

IEC60947

UL508

Rating of Current Ie 40A FLA: 40A
Rating of Contacts Voltage Ue 240/277V 240/277/480/600VAC
Rating of Insulation Voltage Ui 660V 600V
Rating of Coil Voltage Us 380-480V Us: 480VAC 60Hz
Mechanical Life 1000,000 Cycle 1000,000 Cycle
Electricity life 100,000 Cycle 250,000 Cycle
Product Explanation

1.Product Description

HLC-2XH04GGIs Suitable To Exchanges 50 Or 60hz, Fixed Working Voltage To 277v, Fixed Operating Current To 40A Single-Phase Load Circuit Control,At Present, Widely Applies To The Single-Phase Mechanical Device Main Circuit As Well As The Single-Phase Air-Conditioner Compressor Control.


2 .The Regular Service Conditon And Installs The Condition
a. In The Surrounding Air Temperature The Limiting Value Is +65 , Gets
Down The Limiting Value Is -25
b. The Installation Site Elevation Does Not Surpass 2000m
c. The Air Pollution Rank Is 2 Levels
d. Installs The Category Is Ii ;
e. Installment Facing The Gradient Does Not Surpass ±5°
f. Not Remarkable Undulation, Impact And Vibration Place.

3 .Main Technical Parameter
a. Contactor Coil Picking Up In 75% ~ 110% Us Reliably
Working, Its Drop Out Voltage In 20% ~ 70%Us
b. Contactor Use Category: Ac-1Ac8a
c. Contactor In With 0.4m Place, Its Noise Below 40db.

4 . Installing Specification And Install Size

a. Installs The Way To Be Fixed For The Screw, Some Two Kinds Install The Size To Choose One Kind Of Size Fitting Surface And The Horizontal Plane Are The Vertical Shape Gradient Are Not Bigger Than ±5°

b. Before The Use Should Inspect The Power Terminal And The Contactor
Quick Connect Whether Inserts Arrives, Is Reliable, Avoids Creating
The Breakdown, Behind Check Off May Electrify Tries .

Conforms To The Standard



1 Conforms To UL508, IEC60947, GB14048 Standard
2 Approved By UL,CUL,TUV,CE,CCC,Safe Certification and ISO9001 Certification(SGS)

CCC Certificate Number:  2005010309156761

UL Files Number: E251539

Ordering Request

In Order To Guarantee You Purchase Right, Please Read The Specify Type Before Order.

If You Request As Follows: Nominal Current: 40A, Working Voltage: 240/277V,480V,600V, Pole Number: One Pole Without Shunt, Coil Control Voltage: 480V, Wiring Way: Quick Connect, Load Current: Single-Phase Motor Controls Or Heating Load, Packing: 50/Each Box (Factory Packing), With The Cover. Then You May Be Elect The Type : HLC-2XH04GG

Ie Pole Rating of Coil Control Voltage Motor Power
24VAC 120VAC 208/240VAC 277VAC 480VAC 240VAC
40A 2P HLC-2XQ04GG HLC-2XT04GG HLC-2XU04GG HLC-2XV04GG HLC-2XH04GG 1.5Kw
Instruction Booklet Downloading

HLC-1P,1N,1X,2X,3X,4X series Difinite Purpose Contactor

DownLoad PDF DataSheet
